GIGABYTE AMD B650 SAM5 ATX

Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|B650AELITEAXICE1.1
EAN:
4719331859374
Kaina:
198,96 Eur
Yra LV sandelyje

1-2 d.d.

Greitas pristatymas

40+

šalių išsiųsta prekių

14 metų

IT rinkoje

2000+

Verslo klientų

Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
BIOS
ACPI version 5.0
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Expansion slots
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 25110
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 25110
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 25110
Number of M.2 (M) slots 3
PCI Express x16 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Features
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Component for PC
Cooling type Passive
Motherboard chipset AMD B650
Motherboard chipset family AMD
Motherboard form factor ATX
PC health monitoring Fan/Temperature/Voltage/Water cooling
Power source type ATX
Product colour White
Windows operating systems supported Windows 10 x64/Windows 11 x64
Graphics
DirectX version 12.0
HDCP Yes
Maximum resolution 4096 x 2160 pixels
Parallel processing technology support Not supported
Internal I/O
12V power connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
Front panel audio connector Yes
Front panel connector Yes
Number of chassis fan connectors 4
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
Number of RGB LED pin headers 4
Number of SATA III connectors 4
Number of water pump connectors 2
Peripheral (Molex) power connectors (4-pin) 1
RGB LED pin header Yes
TPM connector Yes
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2x2 connectors 1
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Memory
ECC сompatibility Non-ECC
Maximum internal memory 256 GB
Maximum internal memory per slot 64 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 8000 MHz
Supported memory clock speeds 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Network
Bluetooth Yes
Bluetooth version 5.3
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
LAN controller Realtek RTL8125
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
WLAN controller model Realtek RTL8852CE
Packaging content
Antenna included Yes
Batteries included Yes
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included Yes
Packaging data
Package depth 270 mm
Package height 80 mm
Package weight 2330 g
Package width 335 mm
Processor
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Maximum number of SMP processors 1
Processor manufacturer AMD
Processor socket Socket AM5
Supported processor sockets Socket AM5
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
WiFi-AP antenna jack 2
DisplayPort version 1.4
DisplayPorts quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
Headphone outputs 1
Line-in Yes
Microphone in Yes
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 5
Specification
Model B650 A ELITE AX ICE
Units per Shipping Box 6
Unit Calculated Volume 0.01068 cubm
Unit Calculated Weight 2.34 kg

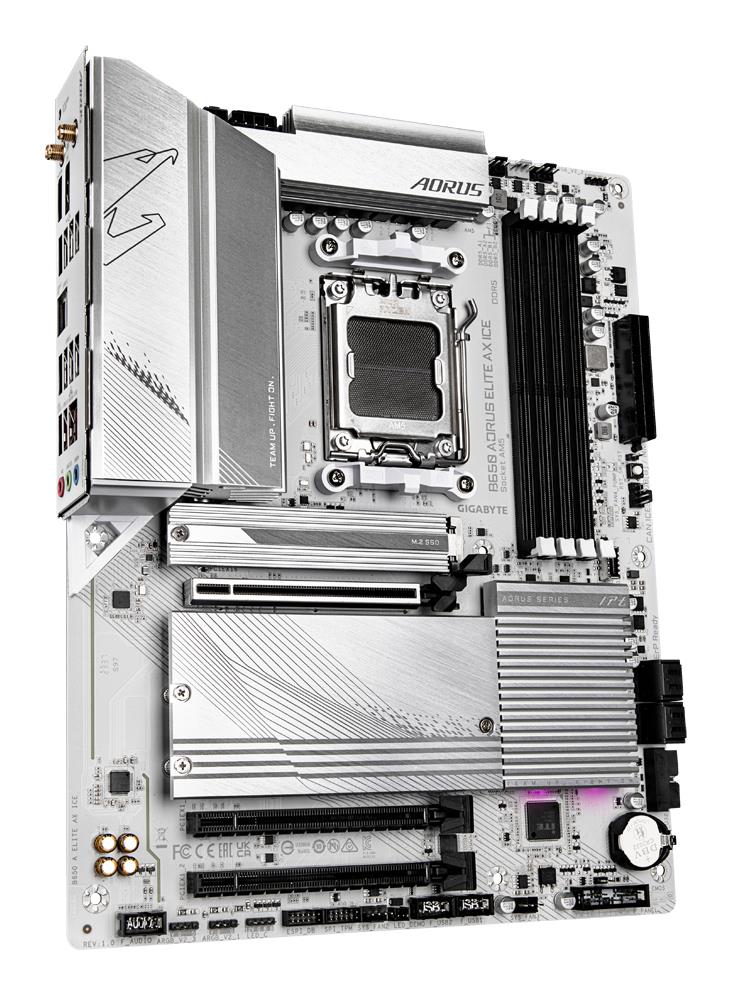

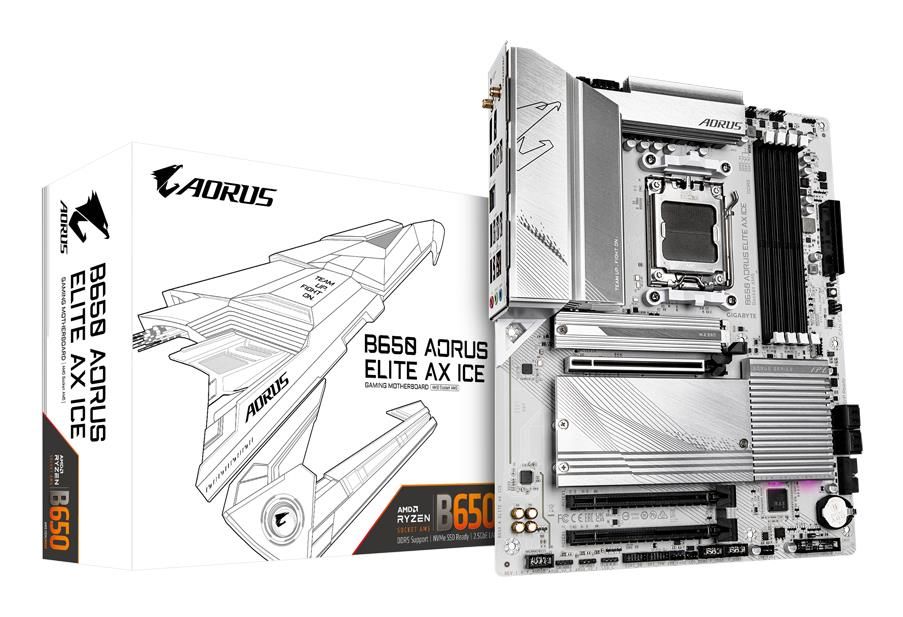

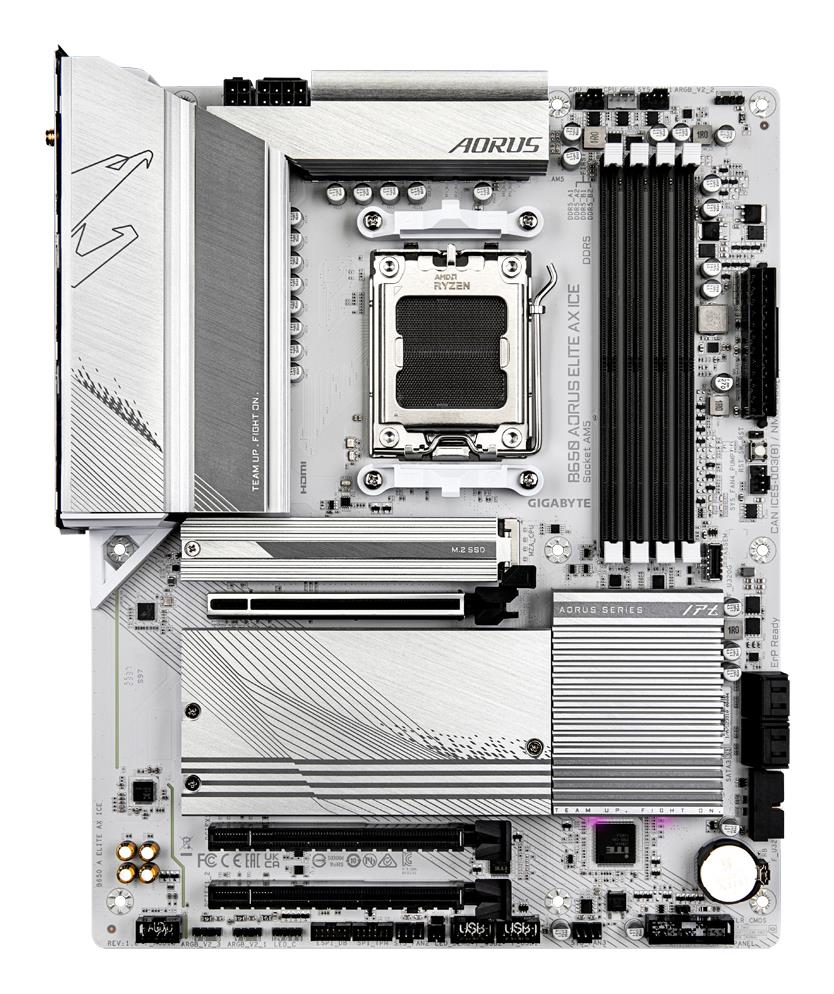

Summary GIGABYTE B650 AORUS ELITE AX ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 12+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Category Code MBA
Unit Box Height 0.27
Unit Box Length 0.335
Unit Box Width 0.08
Storage controllers
Number of HDDs supported 4
Number of storage drives supported 7
RAID levels 0/1/10
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD
Technical details
Warranty period 3 year(s)
Weight & dimensions
Depth 244 mm
Height 35 mm
Width 305 mm
