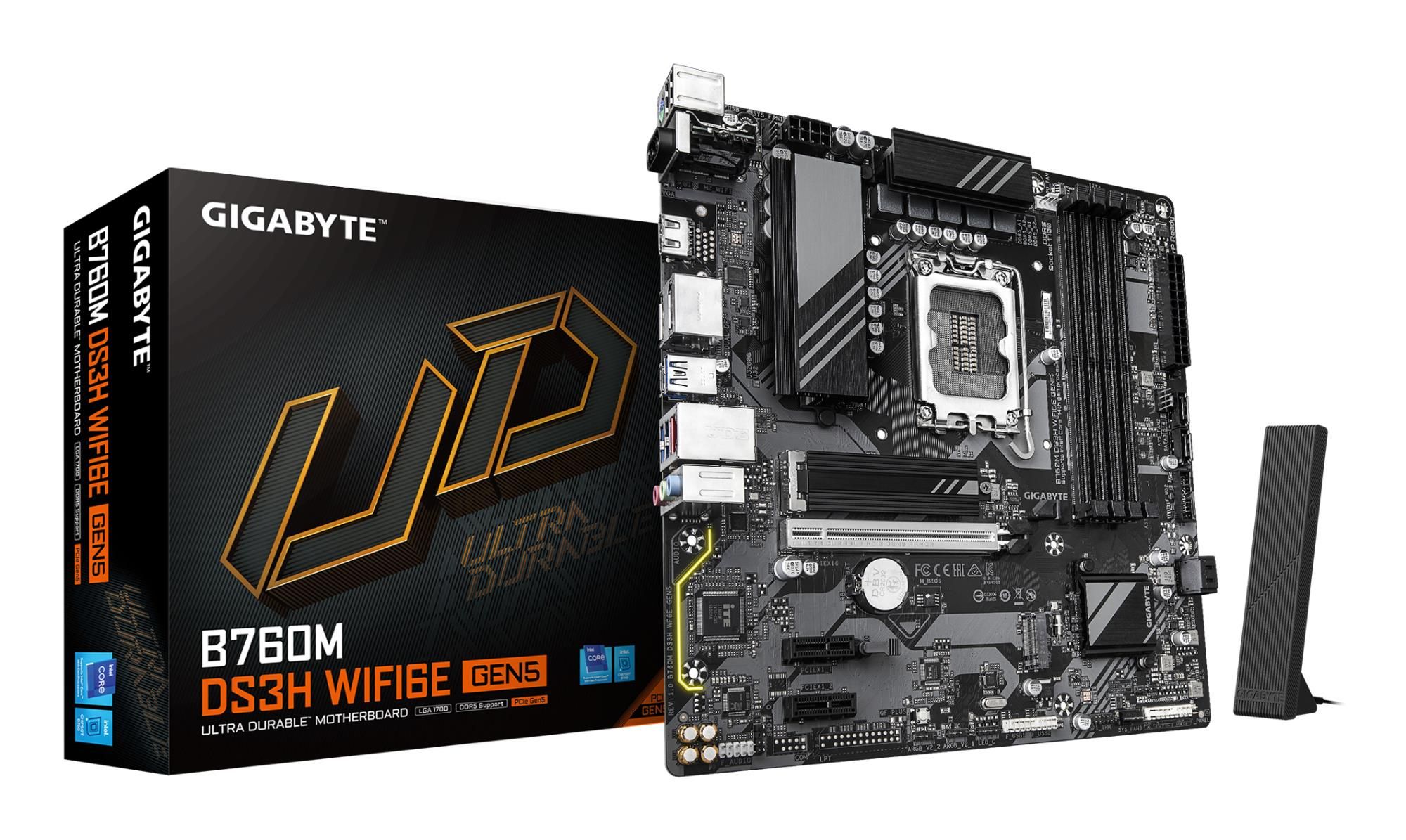

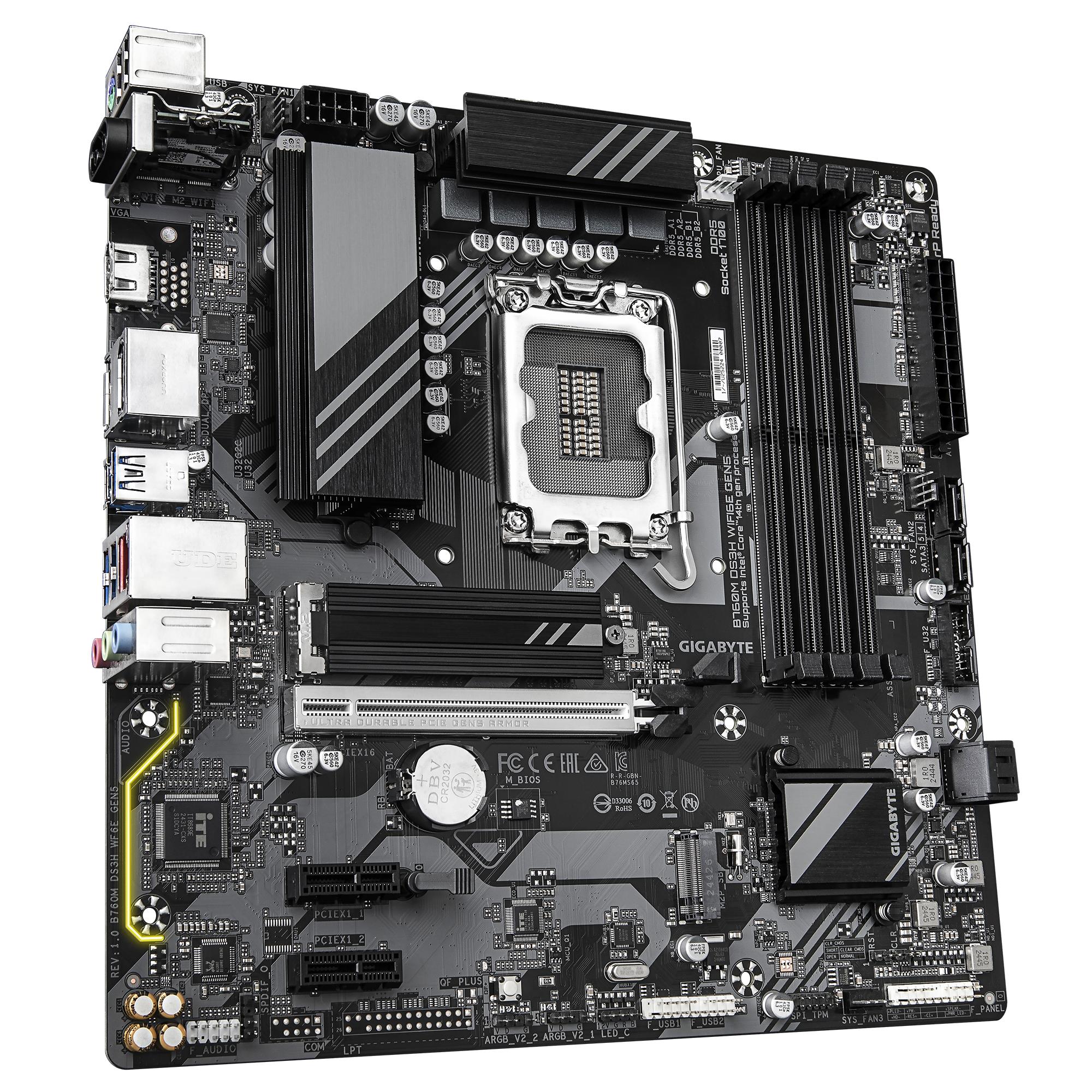

GIGABYTE Intel B760 Express LGA1700 Micro-ATX

Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|B760MDS3HWF6EGEN5
EAN:
4719331872809
Kaina:
145,19 Eur
Yra LV sandelyje

1-2 d.d.

Greitas pristatymas

40+

šalių išsiųsta prekių

14 metų

IT rinkoje

2000+

Verslo klientų

Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
BIOS
ACPI version 5.0
BIOS memory size 128 Mbit
BIOS type UEFI AMI
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Expansion slots
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
Number of M.2 (M) slots 2
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 5.x) slots 1
Features
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Component for PC
Cooling type Passive
Motherboard chipset Intel B760 Express
Motherboard chipset family Intel
Motherboard form factor micro ATX
PC health monitoring Fan/Temperature/Voltage/Water cooling
Power source type ATX
Product colour Dark brown
Windows operating systems supported Windows 10 x64/Windows 11 x64
Graphics
DirectX version 12.0
HDCP Yes
Maximum resolution 4096 x 2304 pixels
Parallel processing technology support Not supported
Internal I/O
12V power connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
Front panel audio connector Yes
Front panel connector Yes
Number of chassis fan connectors 3
Number of CPU fan connectors 1
Number of EPS power connectors (8-pin) 1
Number of RGB LED pin headers 3
Number of SATA III connectors 4
RGB LED pin header Yes
S/PDIF out connector Yes
TPM connector Yes
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Memory
ECC сompatibility ECC & Non-ECC
Maximum internal memory 256 GB
Maximum internal memory per slot 64 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 5600 MHz
Supported memory clock speeds 4400/4800/5200/5600 MHz
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Network
Bluetooth Yes
Bluetooth version 5.3
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
LAN controller Realtek RTL8125
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
WLAN controller model Intel Wi-Fi 6E AX210
Other features
Weight 1100 g
Packaging content
Antenna included Yes
Batteries included Yes
Bundled software Norton® Internet Security (OEM version)
Screws included Yes
Packaging data
Package depth 268 mm
Package height 68 mm
Package weight 1200 g
Package width 270 mm
Processor
Compatible processor series Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron®
Processor manufacturer Intel
Processor socket LGA 1700
Supported processor sockets LGA 1700

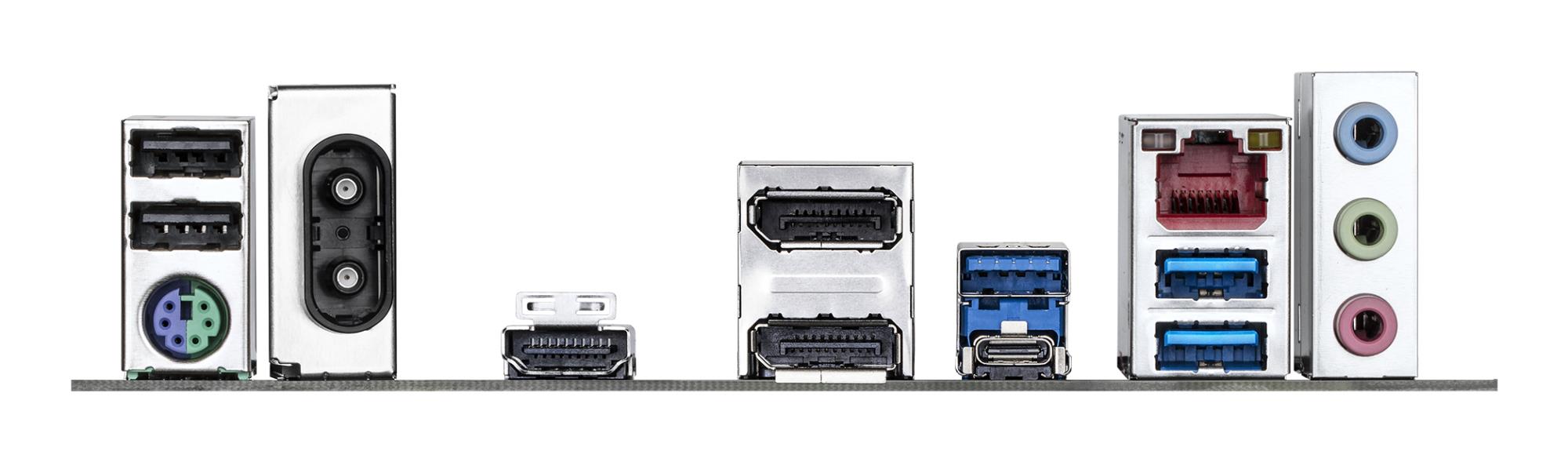

Rear panel I/O ports
DisplayPort version 1.2
DisplayPorts quantity 2
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
Headphone outputs 1
Line-in Yes
Microphone in Yes
PS/2 ports quantity 1
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
WiFi-AP antenna jack 2
Specification
Summary GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Category Code MBI
Unit Box Height 0.07
Unit Box Length 0.27
Unit Box Width 0.27
Model B760M DS3H WIFI6E GEN5
Units per Shipping Box 1
Unit Calculated Volume 0.005103 cubm
Unit Calculated Weight 1.1 kg
Storage controllers
Number of HDDs supported 4
Number of storage drives supported 6
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,PCI Express 4.0,SATA III
Supported storage drive types HDD & SSD
Technical details
Warranty period 3 year(s)
Weight & dimensions
Depth 244 mm
Height 35 mm
Width 244 mm
