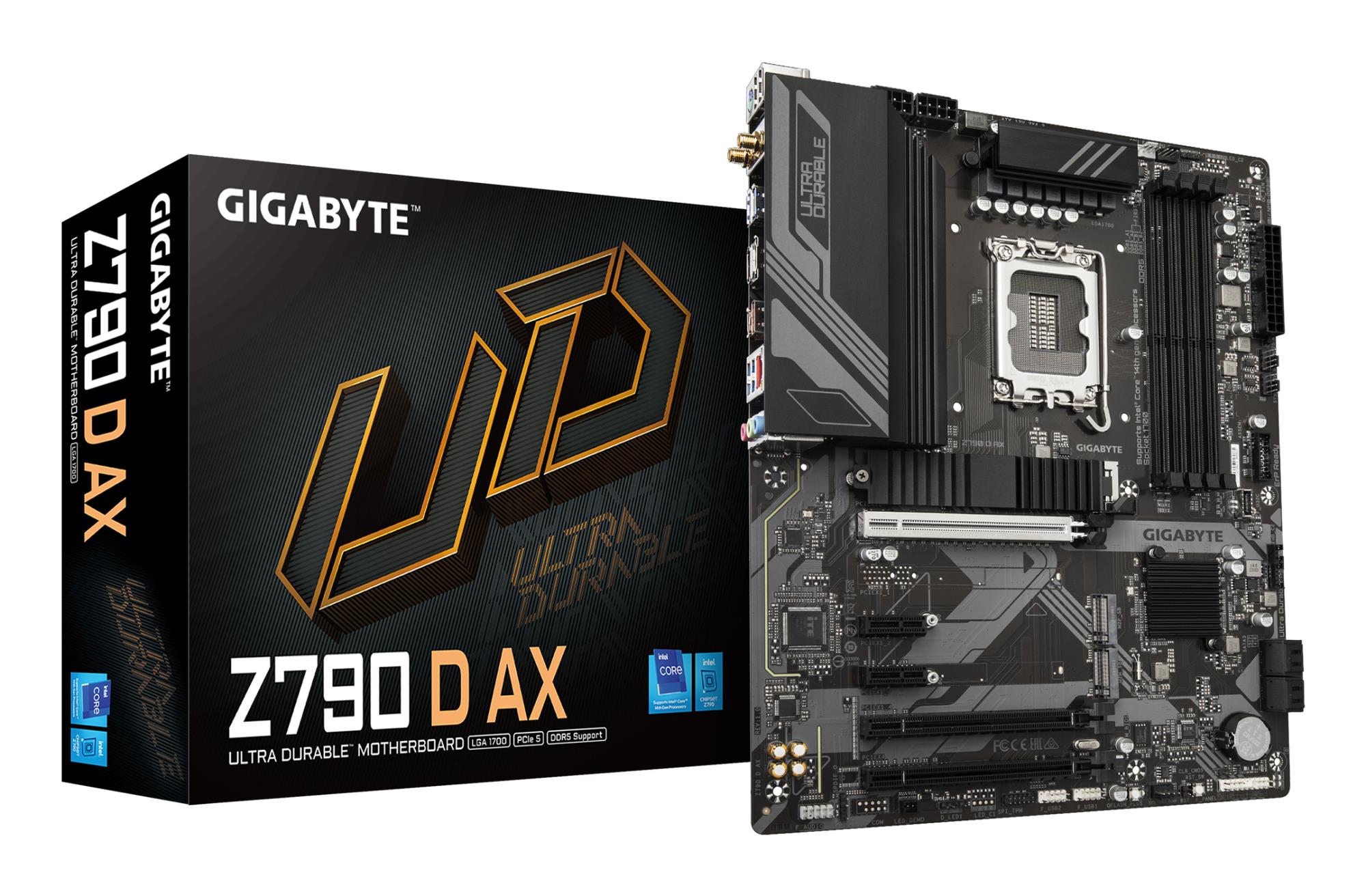

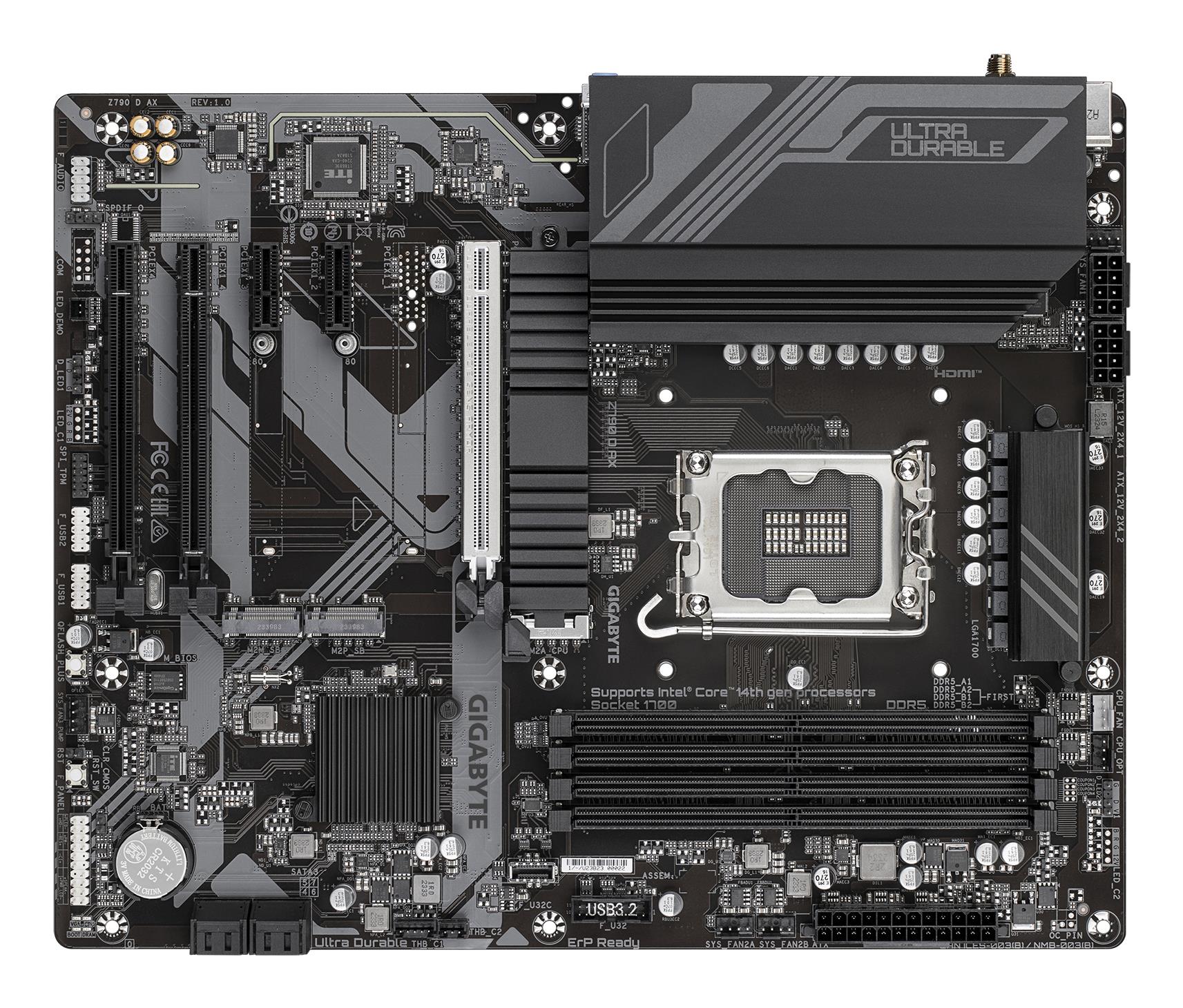

GIGABYTE Intel Z790 LGA1700 ATX

Mainboard|GIGABYTE|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|Z790DAX1.1
EAN:
4719331860592
Kaina:
189,44 Eur
Yra LV sandelyje

1-2 d.d.

Greitas pristatymas

40+

šalių išsiųsta prekių

14 metų

IT rinkoje

2000+

Verslo klientų

Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
BIOS
ACPI version 5.0
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Clear CMOS button Yes
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Expansion slots
Number of M.2 (M) slots 3
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Features
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Component for PC
Motherboard chipset Intel Z790 Express
Motherboard chipset family Intel
Motherboard form factor ATX
PC health monitoring Fan/Temperature/Voltage/Water cooling
Power source type ATX
Product colour Brown
Windows operating systems supported Windows 10 x64/Windows 11 x64
Graphics
DirectX version 12.0
Discrete graphics support Yes
HDCP Yes
Maximum resolution 4096 x 2304 pixels
Parallel processing technology support Not supported
Internal I/O
12V power connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
EPS power connector (8-pin) Yes
Front panel audio connector Yes
Front panel connector Yes
Number of EATX power connectors 2
Number of SATA III connectors 4
RGB LED pin header Yes
Thunderbolt headers 2
Total number of SATA connectors 4
TPM connector Yes
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Memory
ECC сompatibility ECC & Non-ECC
Maximum internal memory 192 GB
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 7600 MHz
Supported memory clock speeds 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Supported memory module capacities 12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Network
Bluetooth Yes
Bluetooth version 5.3
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
LAN controller Realtek RTL8125
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
WLAN controller model Intel Wi-Fi 6E AX211
Packaging content
Antenna included Yes
Batteries included Yes
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Cables included SATA
Packaging data
Package depth 270 mm
Package height 80 mm
Package weight 1842.5 g
Package width 335 mm
Processor
Compatible processor series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Maximum internal memory supported by processor 192 GB
Maximum number of SMP processors 1
Processor manufacturer Intel
Processor socket LGA 1700
Supported processor sockets LGA 1700
Rear panel I/O ports
DisplayPort version 1.2
DisplayPorts quantity 1
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
Headphone outputs 1
Microphone in Yes
PS/2 ports quantity 1
S/PDIF out port Yes
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
USB connector type USB Type-A/USB Type-C
WiFi-AP antenna jack 2
Specification
Summary GIGABYTE Z790 D AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
Category Code MBI
Unit Box Height 0.08
Unit Box Length 0.33
Unit Box Width 0.27
Model Z790 D AX (rev. 1.0)
Units per Shipping Box 8
Unit Calculated Volume 0.0099253 cubm
Unit Calculated Weight 1.85625 kg
Storage controllers
Number of HDDs supported 4
Number of storage drives supported 7
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD
Technical details
Warranty period 3 year(s)
Weight & dimensions
Depth 244 mm
Height 35 mm
Width 305 mm
